Artesyn PM345CE, 230VAC to +5V DC @ 2A Power supply encapsulated linear PSU


Artesyn PM345CE, 230VAC to +5V DC @ 2A Power supply encapsulated linear PSU
Artesyn PM345CE, 230VAC to +5V DC @ 2A Power supply encapsulated linear PSU
Artesyn PM345CE, 230VAC to +5V DC @ 2A Power supply encapsulated linear PSU
Artesyn PM345CE, 230VAC to +5V DC @ 2A Power supply encapsulated linear PSU
Artesyn PM345CE, 230VAC to +5V DC @ 2A Power supply encapsulated linear PSU

Artesyn PM345CE, 230VAC to +5V DC @ 2A Power supply encapsulated linear PSU    Artesyn PM345CE, 230VAC to +5V DC @ 2A Power supply encapsulated linear PSU

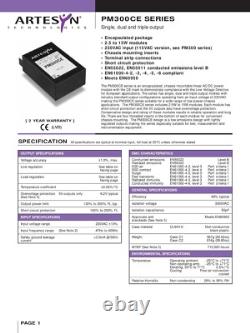

Encapsulated package to 15W modules 230VAC input (115VAC version, see PM300 series) Chassis mounting inserts Terminal strip connections Short circuit protection EN55022, EN55011 conducted emissions level B EN61000-4-2, compliant Meets EN60950. The PM345CE series is an encapsulated, chassis mountable linear AC/DC power module with the CE mark to demonstrate compliance with the Low Voltage Directive for European applications. The series has single, dual and triple output models with industry standard output configurations operating from an input voltage of 230VAC making the PM300CE series suitable for a wide range of low power chassis applications. Each module has short-circuit protection and the 5V outputs also have overvoltage protection.

There are four threaded inserts in the bottom of each module for convenient chassis mounting. The PM300CE design is a low emissions design with tightly regulated outputs making the series especially suitable for test, measurement and instrumentation equipment.


Artesyn PM345CE, 230VAC to +5V DC @ 2A Power supply encapsulated linear PSU    Artesyn PM345CE, 230VAC to +5V DC @ 2A Power supply encapsulated linear PSU
